 Windows, doors, walls of Jansen sections



design

zábradlí, nerezová zábradlí, tryskání, schodiště, dveřepomocny
JANSEN is the system of steel and stainless sections for windows, doors, walls, facades and fire structures. JANSEN sections are produced in non-insulated finish (without interruption of thermal bridge), insulated (with interrupted thermal bridge) and anti-fire (with various fire resistance).

The whole system is supplemented with complete assortment of ironworks and accessories.

JANISOL sections with interrupted thermal bridge and with insulation characteristics of high level for windows and solid glazing.

These slim sections with construction depth of only 60mm (wing 64mm) allow rational performance of solid glazing and windows with opening (revolving, revolving-tipping and tipping) as well as tipping-sliding elements (PASK).

All window wings are equipped with middle and stop sealing along the whole circumference. For various methods of opening, we offer system-tested series of ironworks. All ironworks are all-perimeter, operated by one handle.

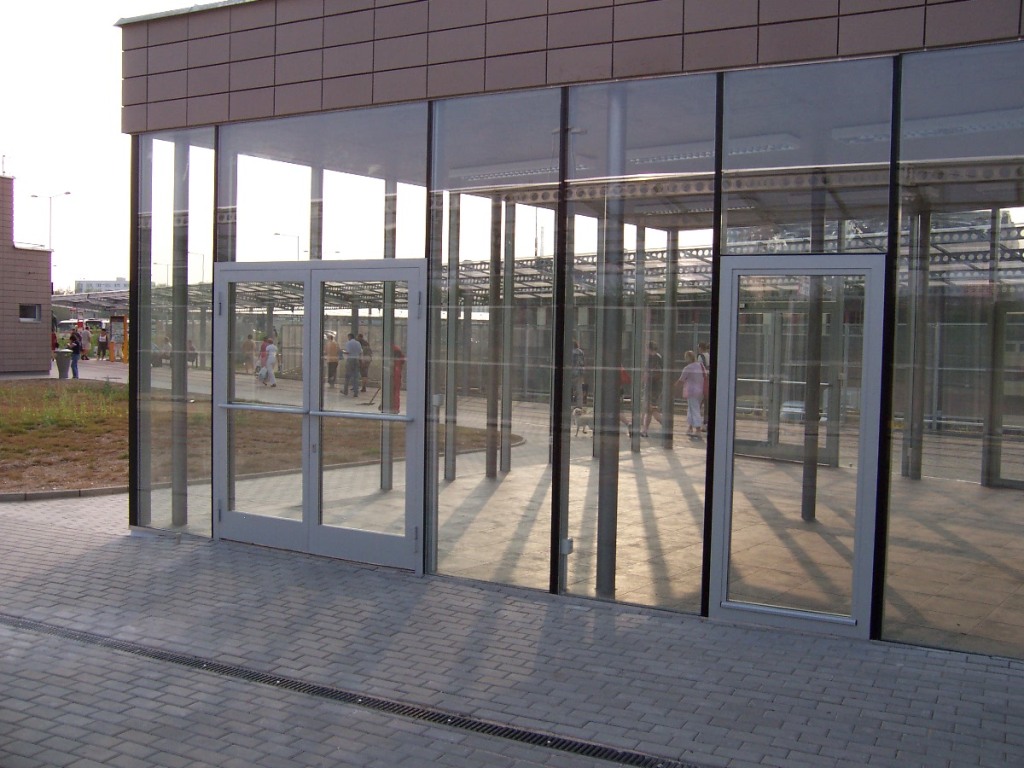

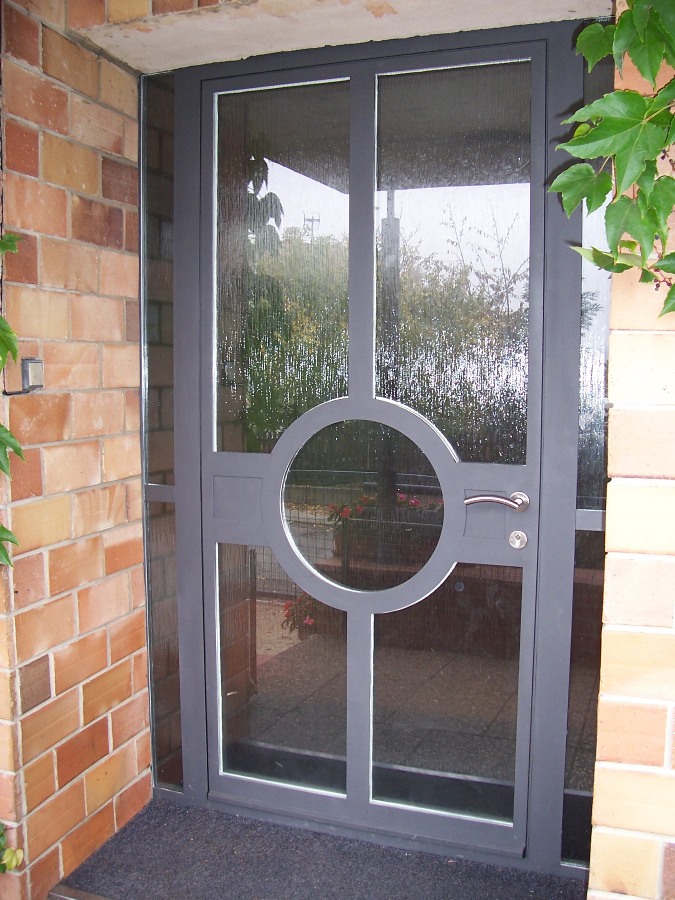

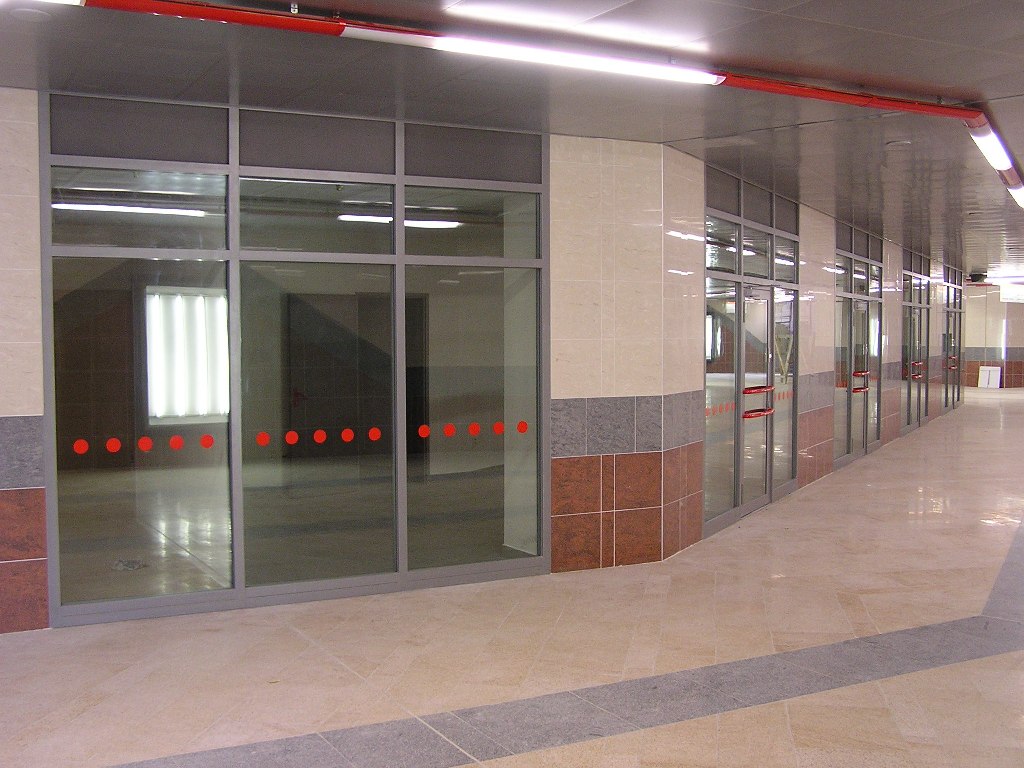

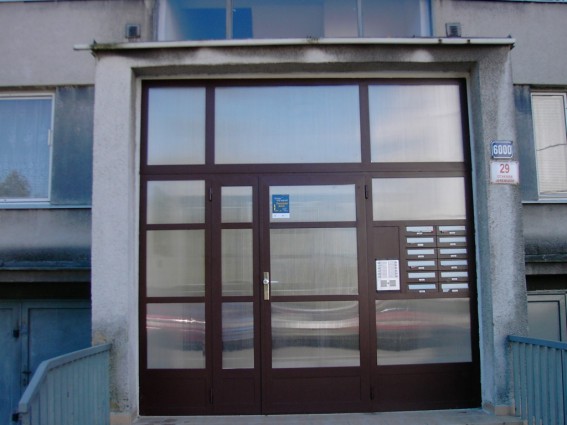

Demonstration of these sections implementation:
dělička

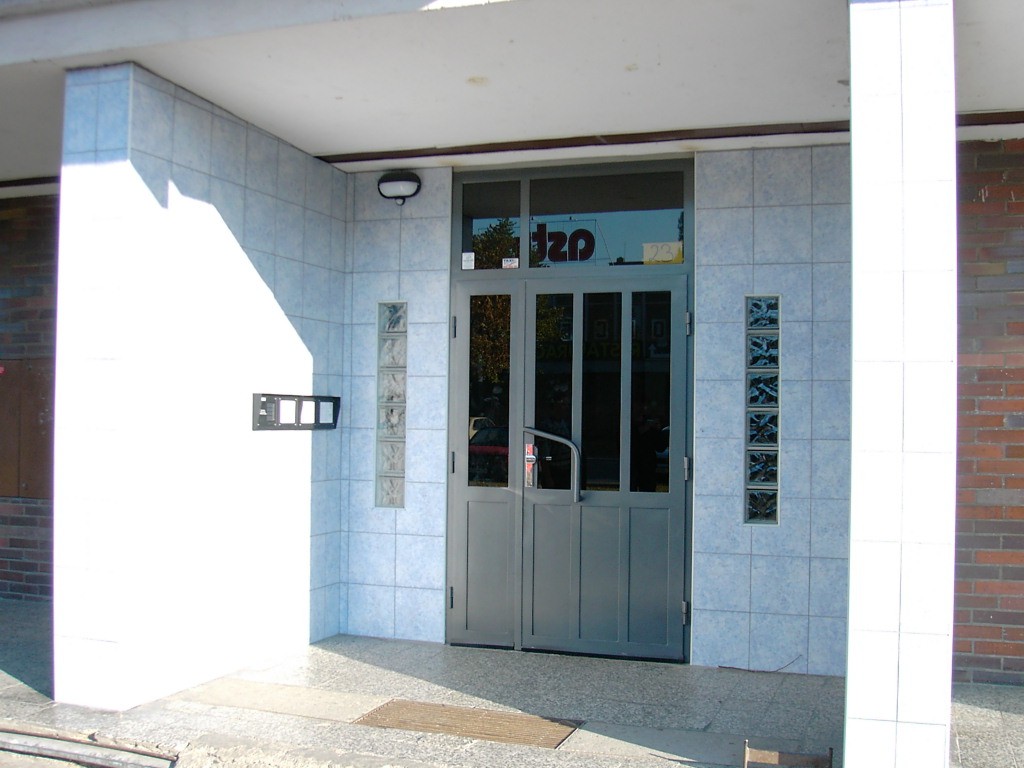

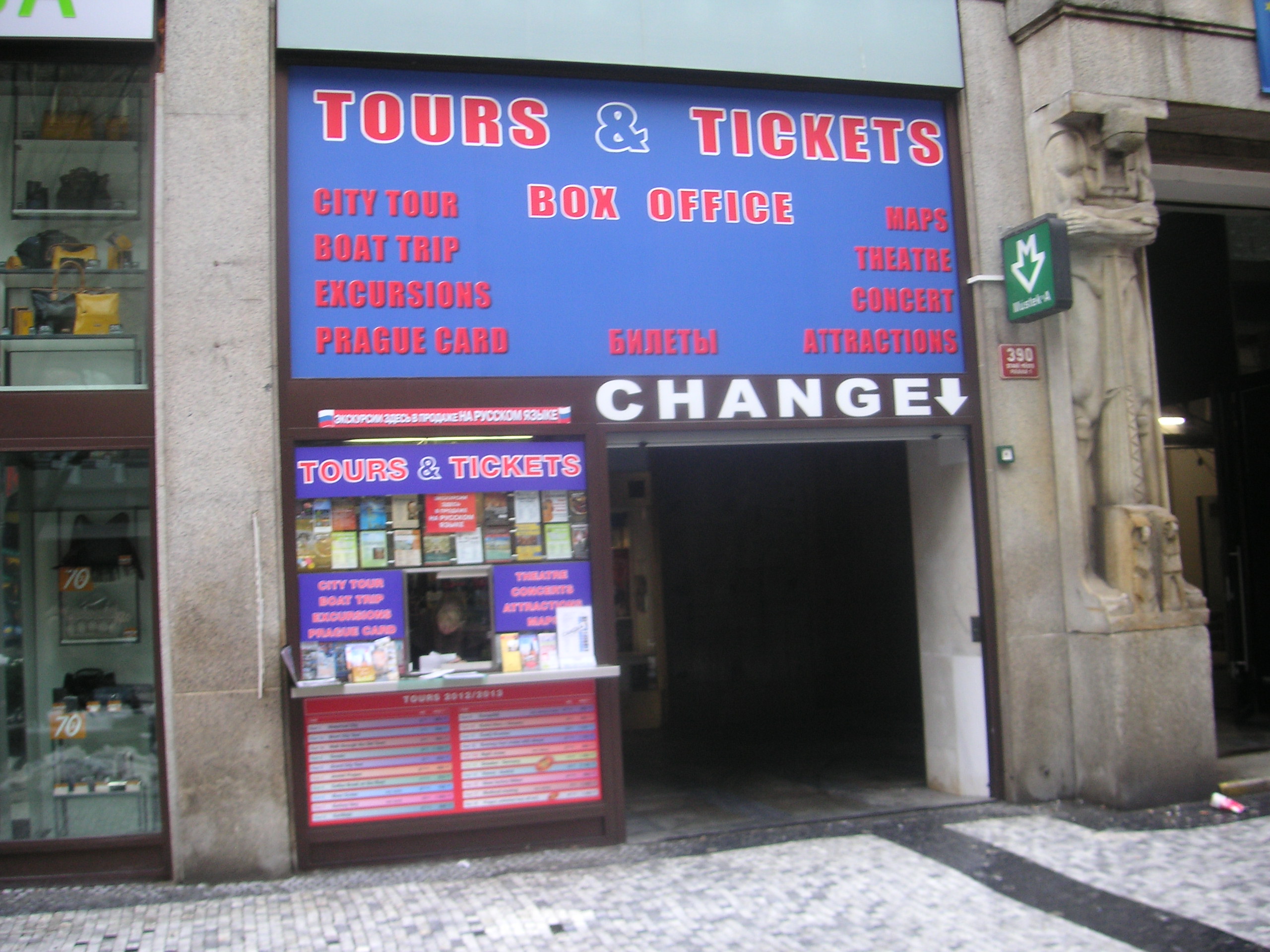

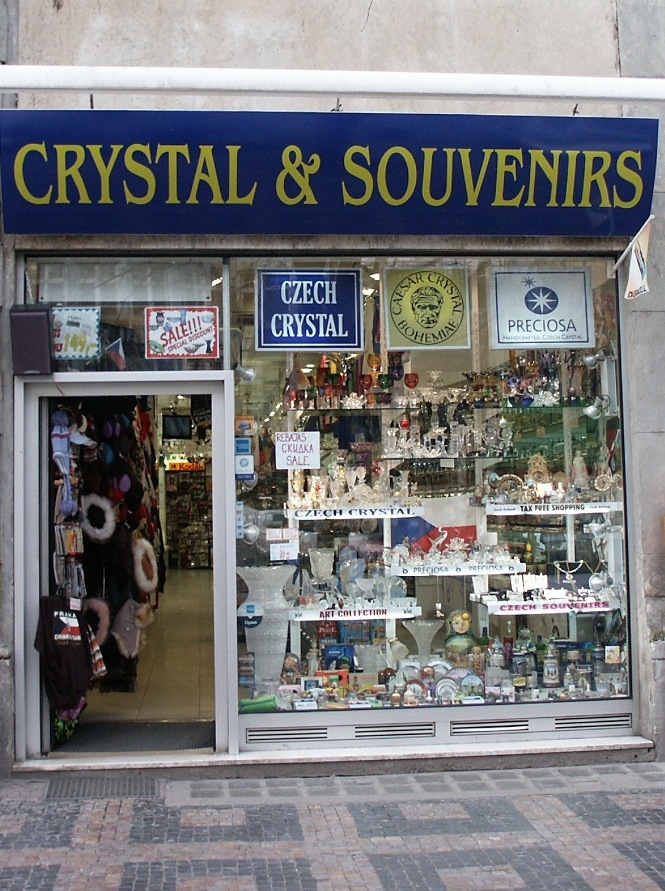

before implementationafter implementation
before implementationafter implementation

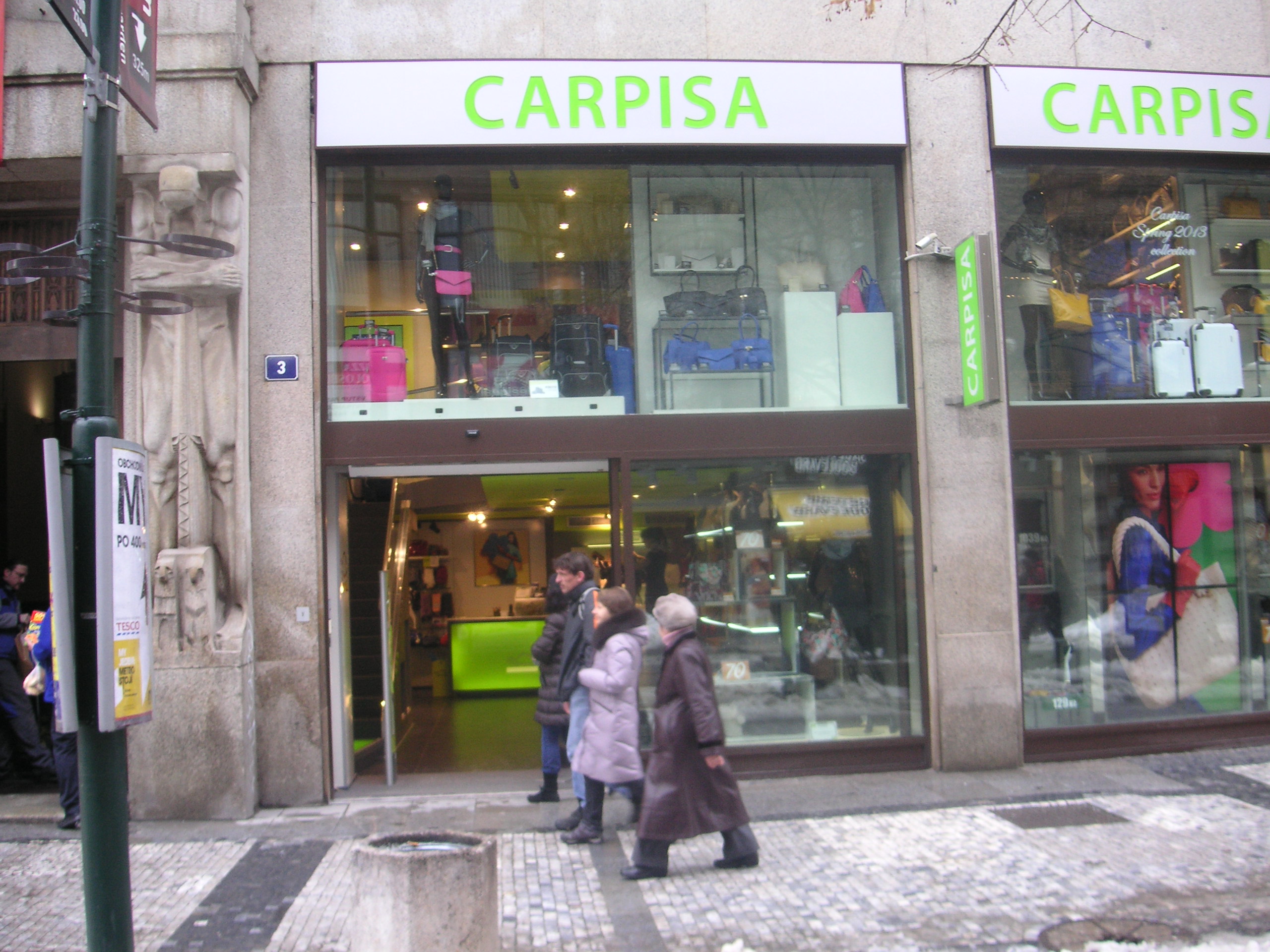

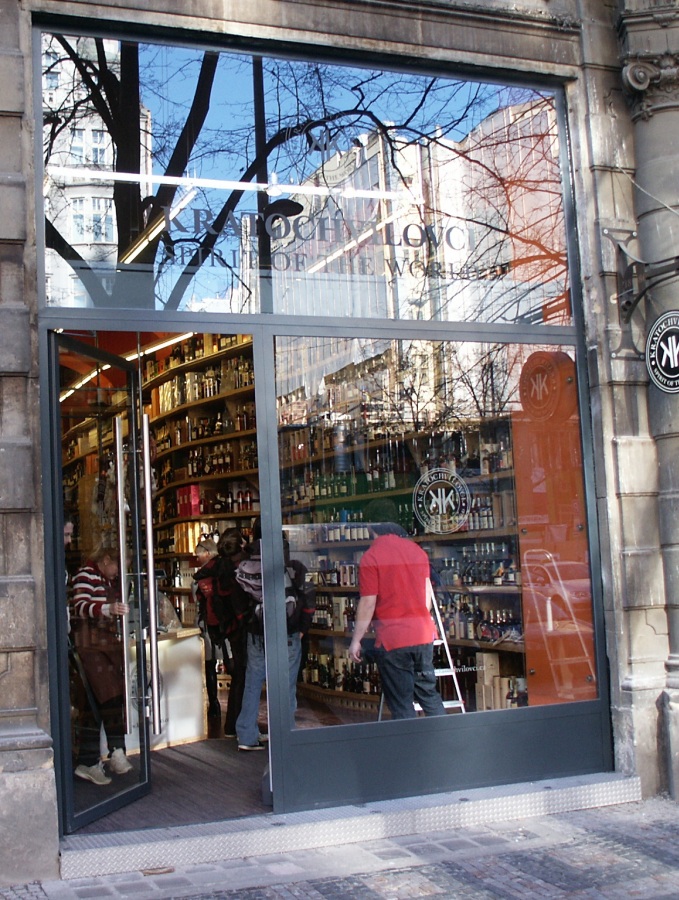

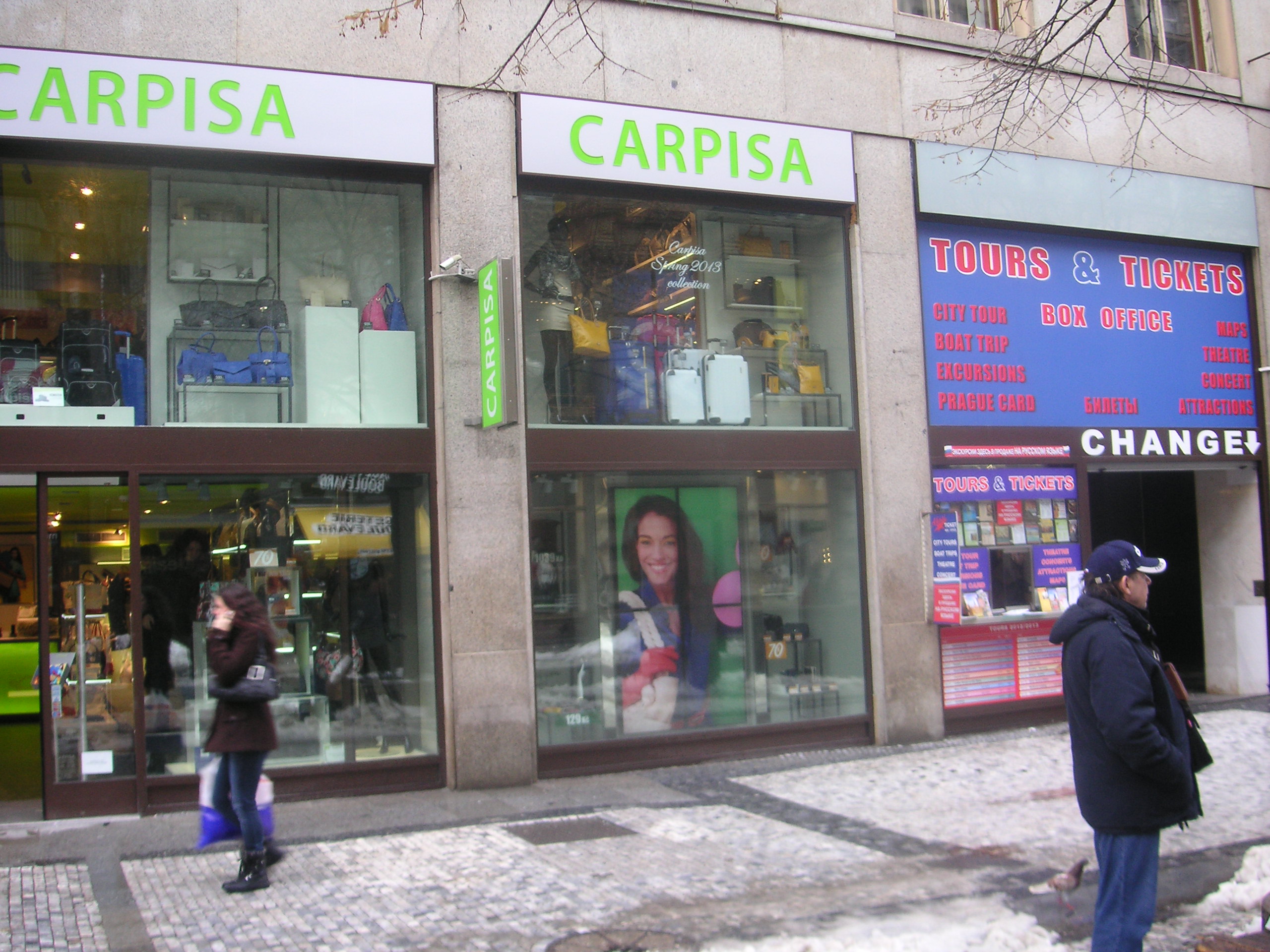

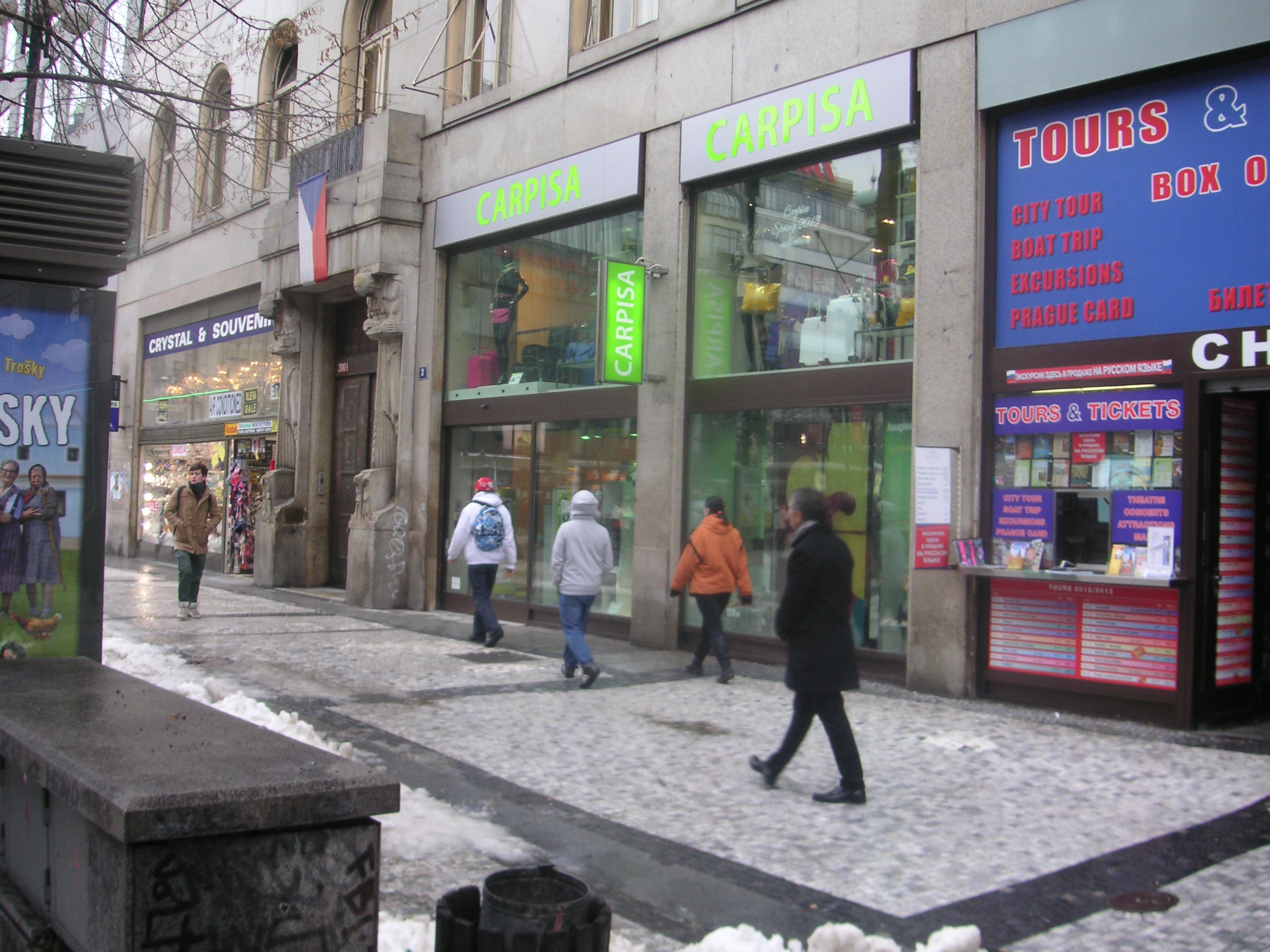

Prague, Příkopy
Prague, Příkopy

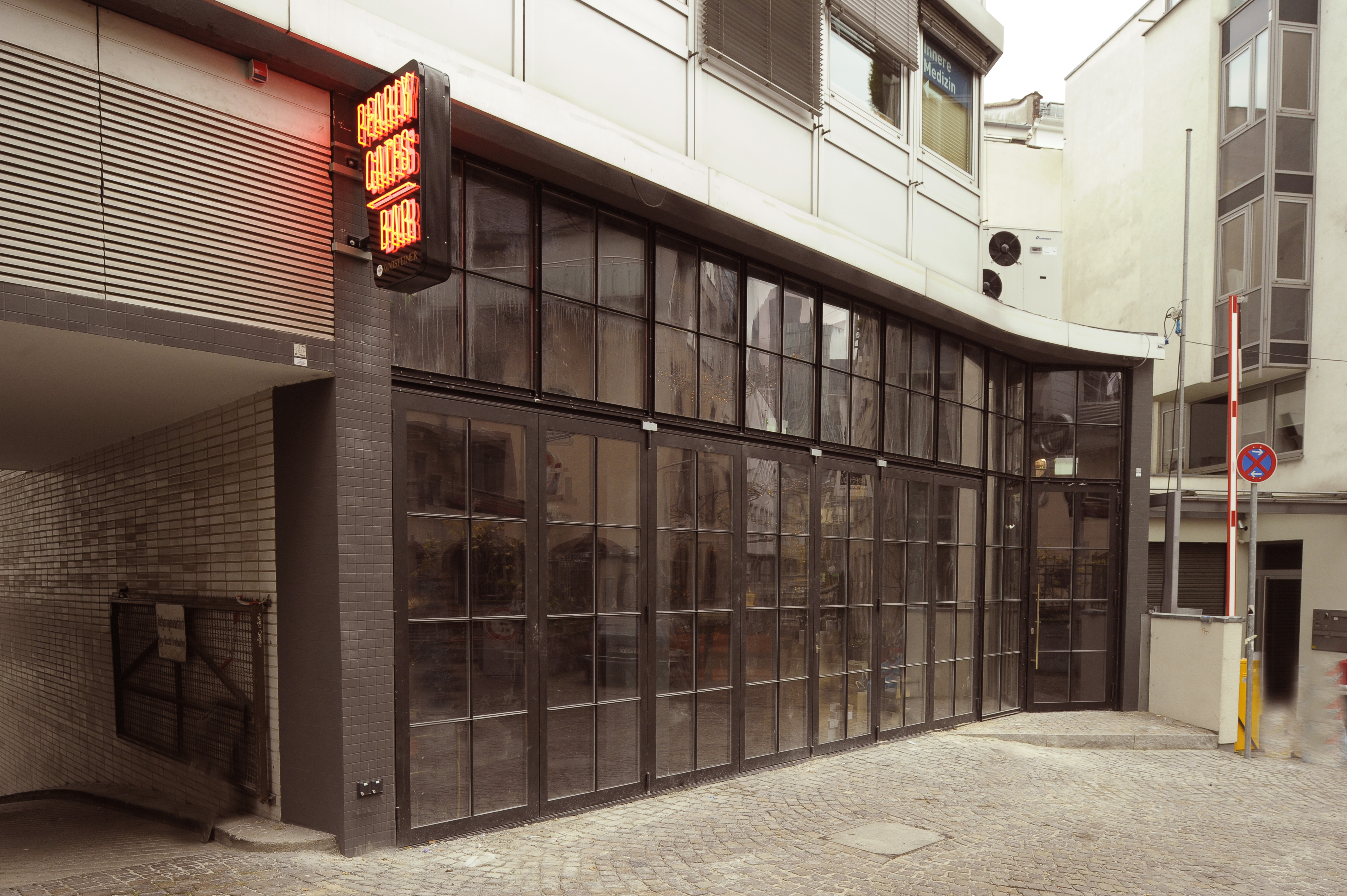

Facade FrankfurtFacade Frankfurt
Facade FrankfurtFacade Frankfurt

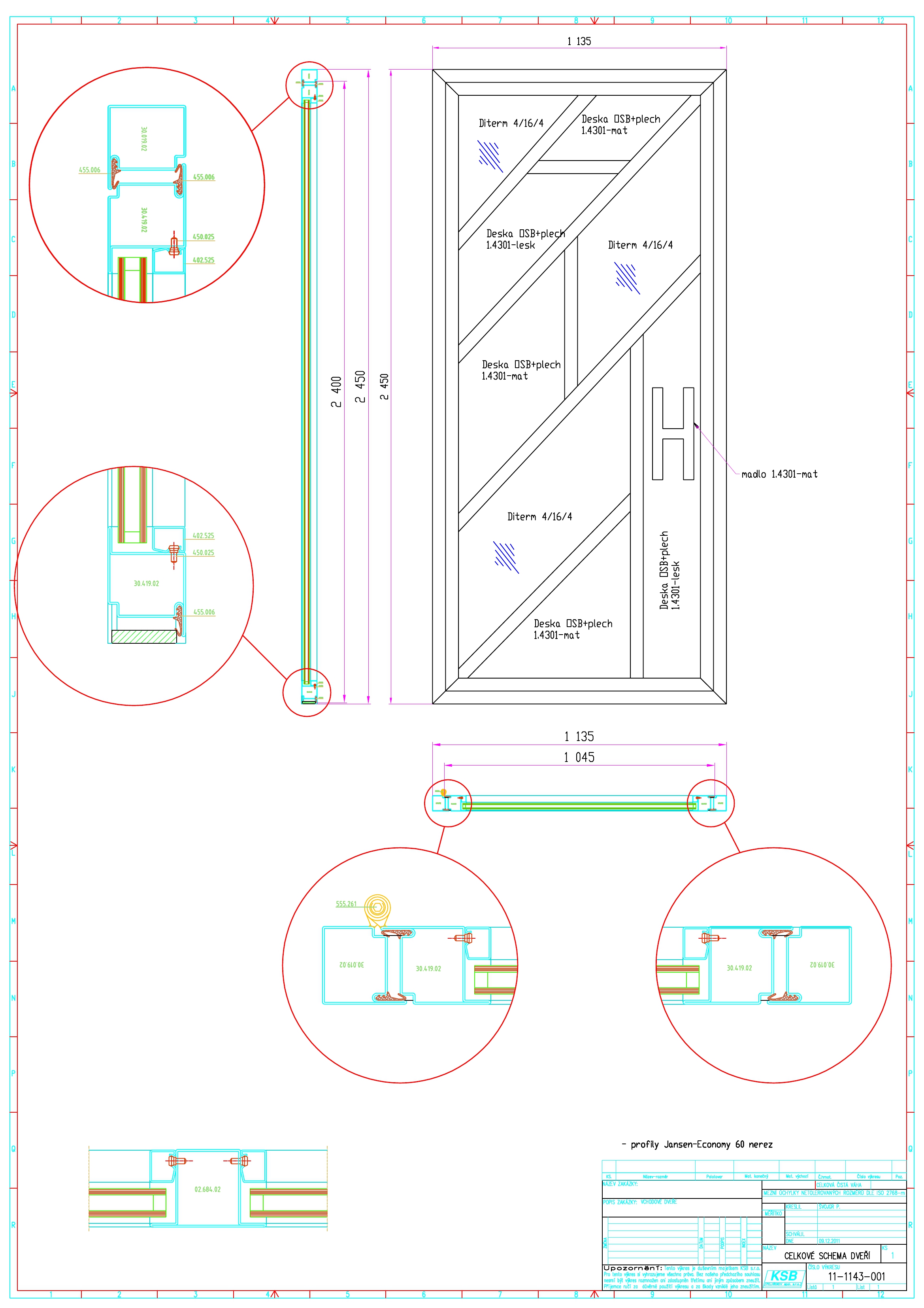

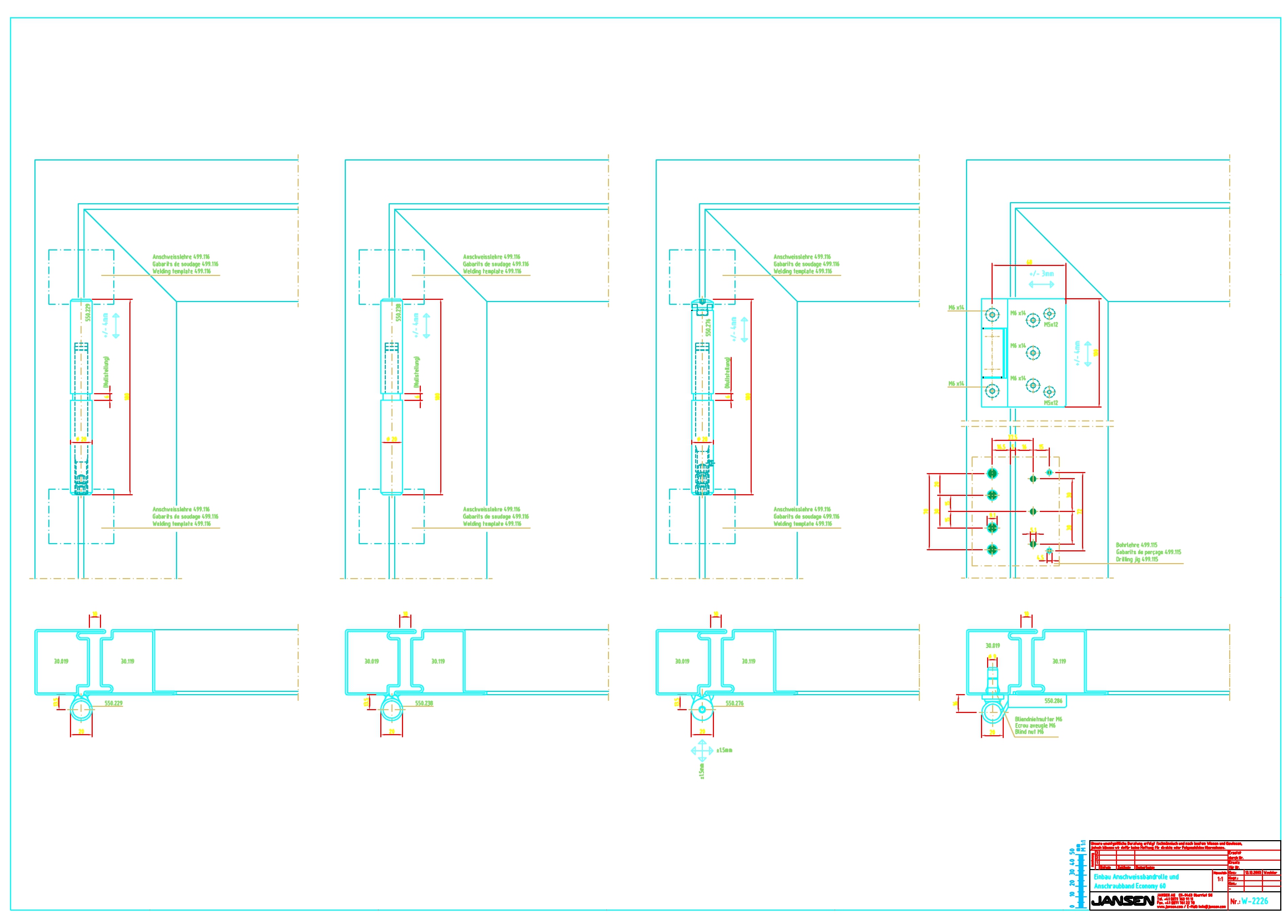

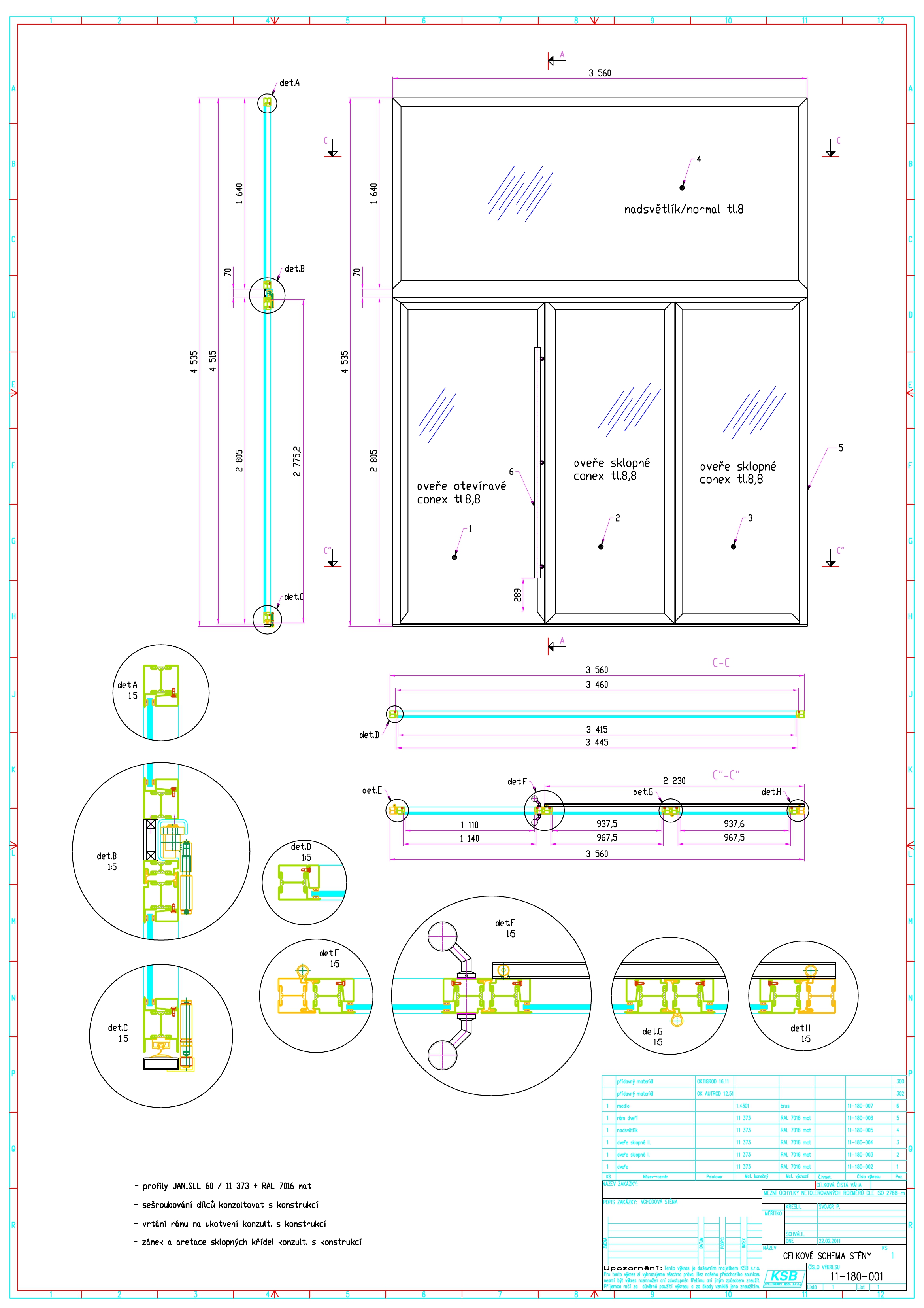

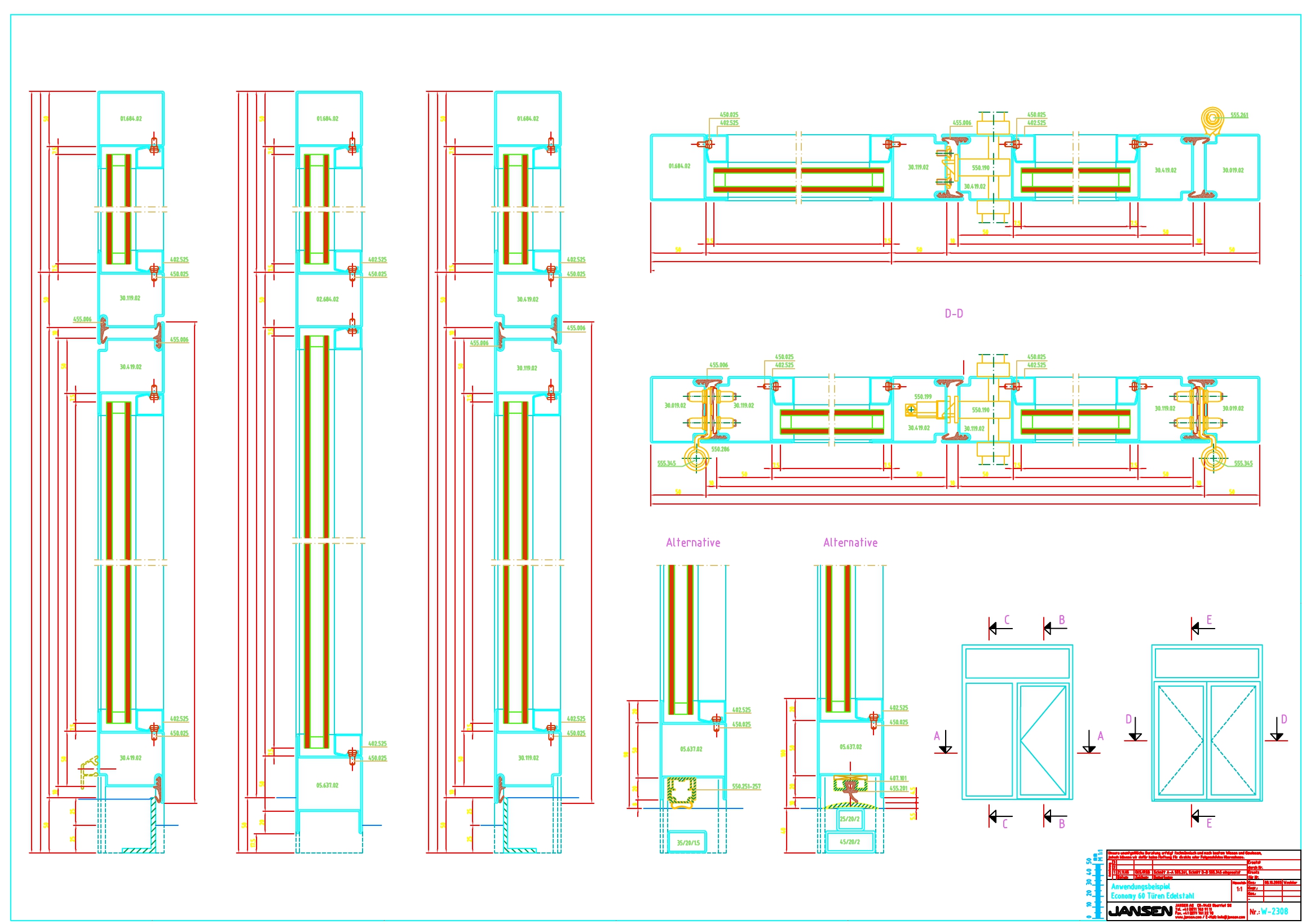

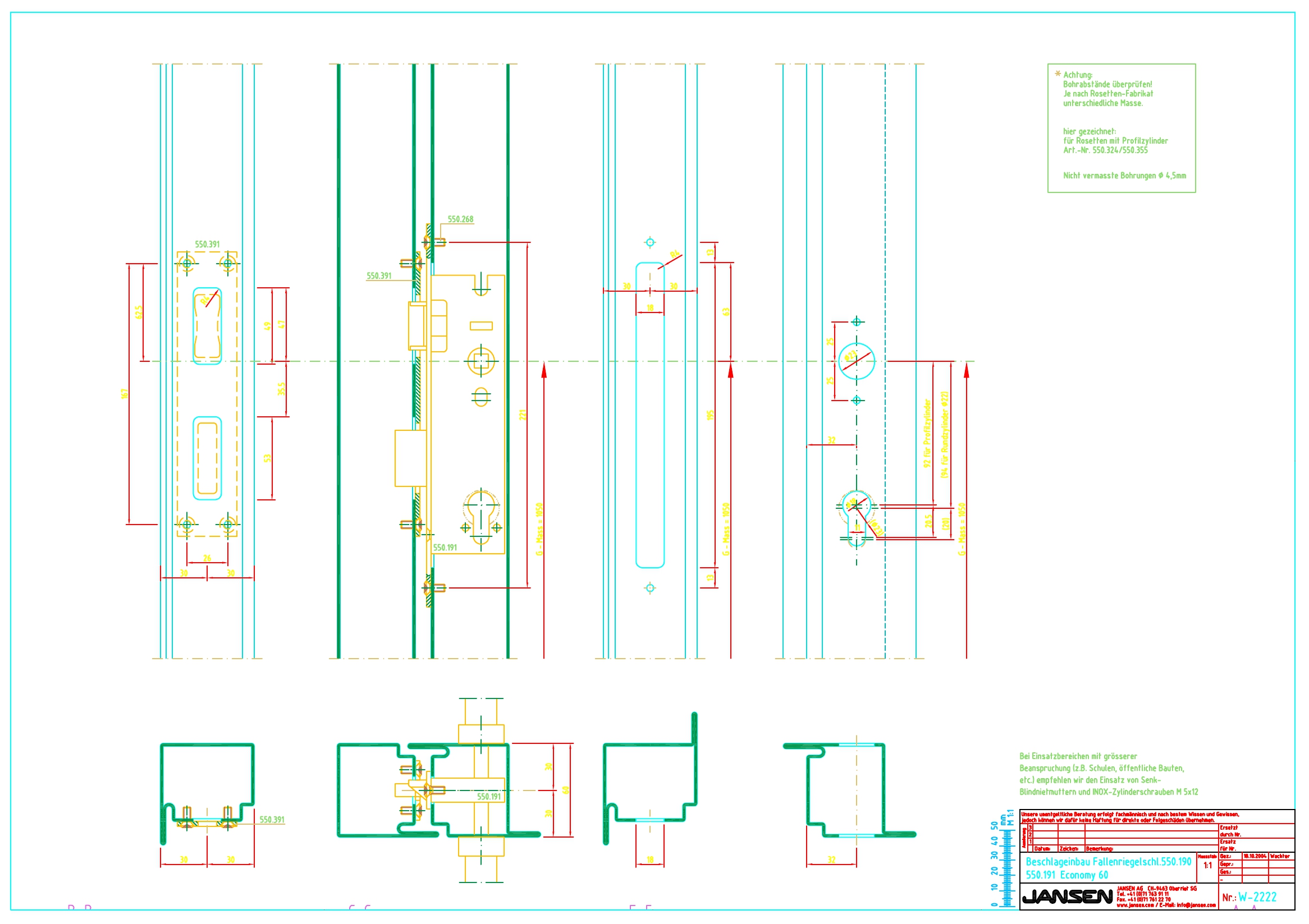

Door drawings
dělička



pomocnypomocny
